BGA SSD

Viking Technology’s BGA SSD is an embedded solid state drive (eSSD) solution designed and optimized for a wide range of embedded/industrial applications. This BGA SSD leverages advanced NAND technologies and NAND geometry (iTLC) to deliver high capacity drives in the densest BGA package (20mm x 16mm).

This SSD-On-Chip is built with embedded OEMs in mind, supporting standard PCIe SATA and legacy PATA interface with ultra reliability and security features such as Opal 2.0, Opalite 1.0, and Pyrite 1.0. The drive is optimized to enable high throughput transfer rates with optional embedded DRAM to enhance data storage efficiency and high random read/write IOPS.

Product Brief Inquiry

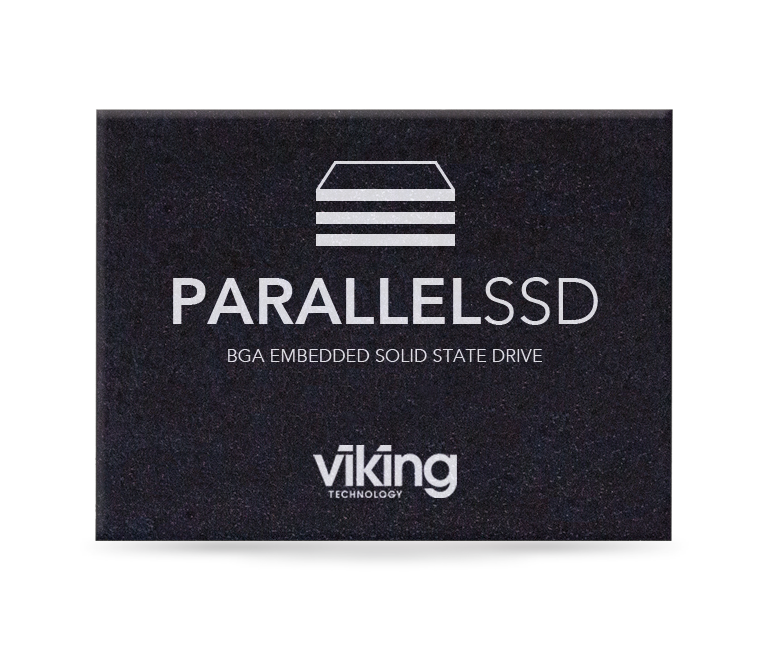

ParallelSSD

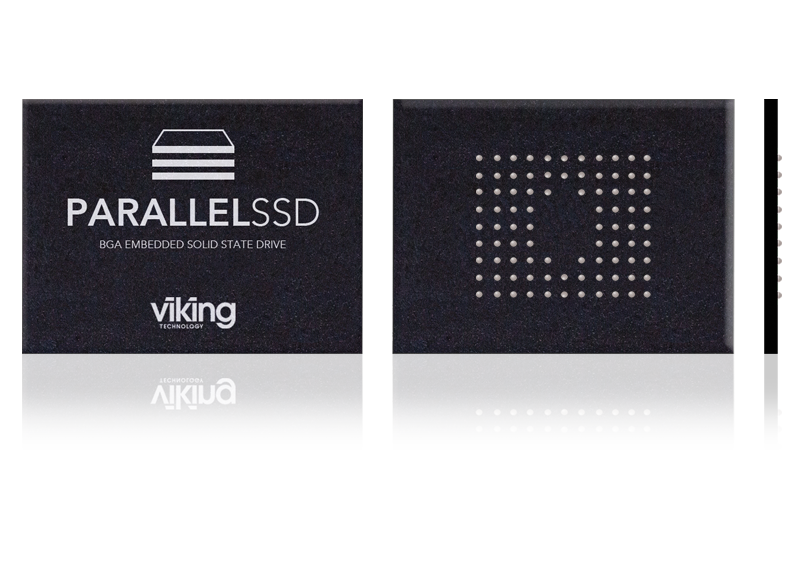

BGA EMBEDDED SSD (eSSD)

HIGH-DENSITY

High Density icon

Compact, Better Efficiency, Cost Savings

RUGGEDIZED

Ruggedized

Enhanced & ruggedized storage for system requirements

INDUSTRIAL TEMP

Industrial Temperature icon

-40ºC to +95ºC

SPACE SAVING

Space Saving icon

SWaP Optimized with Customization

ULTRA HIGH DENSITY PACKAGE SSD

Viking’s BGA SSD solution incorporates full data error detection with recovery engines to provide enhanced data integrity throughout the entire Host-to-NAND-to-Host data path.

FORM FACTOR SIZE (mm) INTERFACE NAND SUPPORT CONTROLLER CAPACITY PERFORMANCE
BGA eSSD 16x20 SATA iMLC/iSLC/iTLC SMI (SM619GX) Up to 480GB Up to 550MB/s (Read) / 450MBs (Write)
BGA eSSD 16x20 PATA iMLC/iSLC SMI (SM601) Up to 64GB Up to 130MB/s (Read) / 100MBs (Write)
BGA eSSD 16x20 PCIe iMLC/iSLC/iTLC Toshiba Up to 1TB Up to 1500MB/s

EXTENDED FEATURES

  • Very small footprint: Saves up to 80% board space vs. Standard 2.5in. SSD
  • Ultra high NAND storage density per cu. in.
  • Supports PCIe SATA & Legacy PATA interface
  • Rugged: Soldered-down BGA eSSD
  • Commercial & Industrial (-40°C to +85°C) temperature range
  • Security features: Opal 2.0, Opalite 1.0, and Pyrite 1.0
ParallelSSD

WHY BGA SSD

Ultra High Density Package Solid State Drive for Military & Embedded Applications

ParallelSSD diagram

LOWER TOTAL COST OF OWNERSHIP

  • Rugged & Reliable (no moving parts)
  • Eliminate requalification cost from NAND generation change
  • Cost saving with low density ParallelSSD, HDD are typically > 160GB capacity

EASY TO USE

  • Plug & Play only requires format/fdisk prior to use
  • Small footprint for space-limited design

ELIMINATE DOWN TIME

  • Support S.M.A.R.T. and advanced SSD Telemetry logging features
  • IntelligentScan with DataRefresh for Data integrity enhancement
  • Full End-to-End data path protection with recovery algorithms
  • LDPC ECC engine with Group Page RAID
  • Remote firmware update available via secured digital signature
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBER CONTROLLER NAND
ParallelSSD SATA FBGA -40°C to+85°C 32GB VRFPSS032G6I1WW4 SM619 Kioxia BiCS 4
ParallelSSD SATA FBGA -40°C to+85°C 64GB VRFPSS064G6I2WW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 128GB VRFPSS128G6I2WW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 256GB VRFPSS256G6I2WW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 512GB VRFPSS512G6I2WW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 10GB VRFPSS010G6I1PW4 SM619 Kioxia BiCS 4
ParallelSSD SATA FBGA -40°C to+85°C 20GB VRFPSS020G6I2PW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 40GB VRFPSS040G6I2PW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 80GB VRFPSS080G6I2PW5 SM619 Kioxia BiCS 5
ParallelSSD SATA FBGA -40°C to+85°C 160GB VRFPSS160G6I2PW5 SM619 Kioxia BiCS 5
