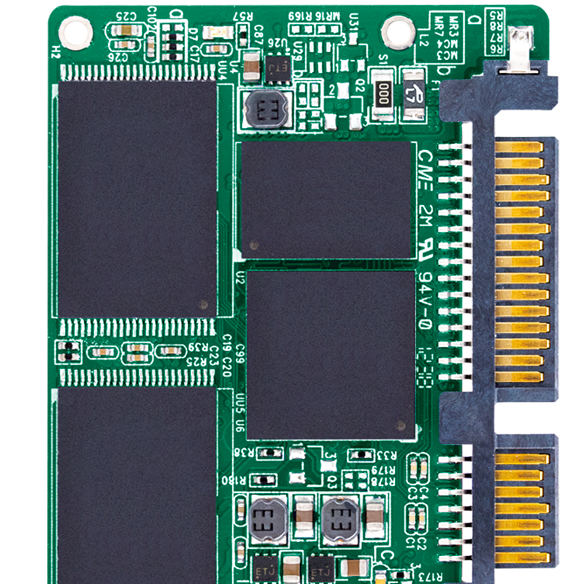

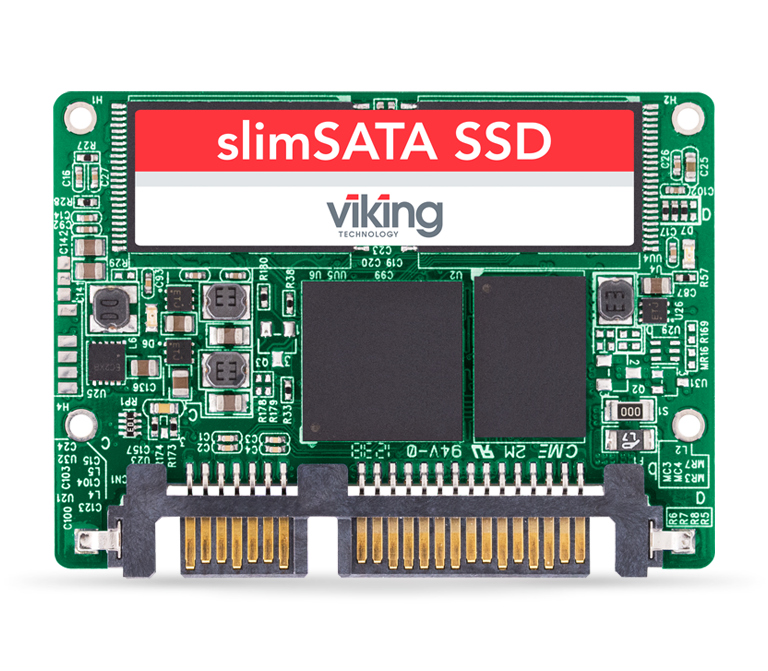

Viking Technology’s SlimSATA SSD is an embedded solid state drive solution that delivers outstanding performance in a standard form factor – with less than half the size of a 2.5 inch SSD.
Viking Technology’s SlimSATA SSD features intelligent write management techniques to optimize endurance, and offers a wide range of densities supporting MLC, SLC, and TLC technologies.
ULTRA-HIGH PERFORMANCE
Thin form factor in a variety of sizes for increased performance & capacity
SPACE SAVING
Optimized with Customization
Viking’s SlimSATA solution delivers outstanding performance in a small, industry standard form factor.
| Capacity | Performance | Environmental | Power | Dimensions |
|---|---|---|---|---|
| SLC – 4GB to 64GB | Up to 500 MB/s (R) | SHOCK – 50g, 11ms, 3 shocks applied on 3 perpendicular axis | SATA Connectivity – Standard SATA Connector | 39.80 (w) x 54.00 (l) x 3.85 (h) |
| eMLC/MLC/3D NAND – 30GB to 1TB | Up to 350 MB/s (W) | VIBRATION – 16.4g rms 10 - 2,000 Hz, 3 axis | 2.5 Watts – Active, 0.25 Watts (Idle) | |
| Up to SATA 6Gb (Interface) | OPERATING TEMP – 0°C to 70°C (Ctemp), -40°C to 85°C (Itemp) | |||
| ALTITUDE – 80,000 feet | ||||
| HUMIDITY – 5% to 95%, non-condensing, relative | ||||
| SAFETY/AGENCY/COMPLIANCE – FCC, CE, TUV |
VIKING CUSTOMIZATION OPTIONS
MARKETS SERVED
Servers | Cache | Data Acceleration | Factory Automation | Boot Device |Medical Equipment
| FORM FACTOR | INTERFACE | TEMP | CAPACITY | PART NUMBER | CONTROLLER | NAND |
|---|---|---|---|---|---|---|
| slimSATA | MO297 | -40°C to +85°C | 120GB | VRFEM1120GEI2WK5 | SM2259 | Kioxia BiCS 5 |
| slimSATA | MO297 | -40ºC to +85ºC | 240GB | VRFEM1240GEI2WK5 | SM2259 | Kioxia BiCS 5 |
| slimSATA | MO297 | -40ºC to +85ºC | 480GB | VRFEM1480GEIJWK5 | SM2259 | Kioxia BiCS 5 |
| slimSATA | MO297 | -40ºC to +85ºC | 960GB | VRFEM1960GEIKWK5 | SM2259 | Kioxia BiCS 5 |
| slimSATA | MO297 | -40ºC to +85ºC | 1920GB | VRFEM11T92EILWK5 | SM2259 | Kioxia BiCS 5 |
