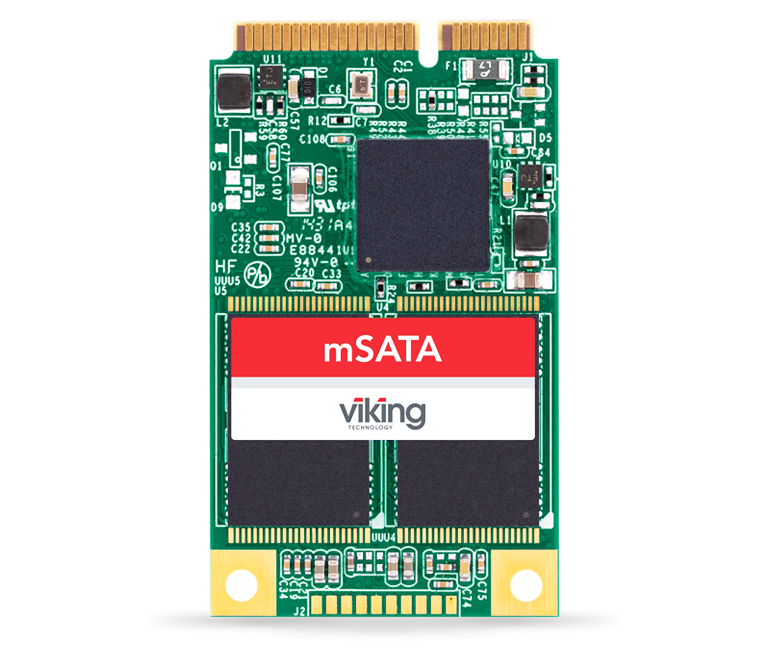

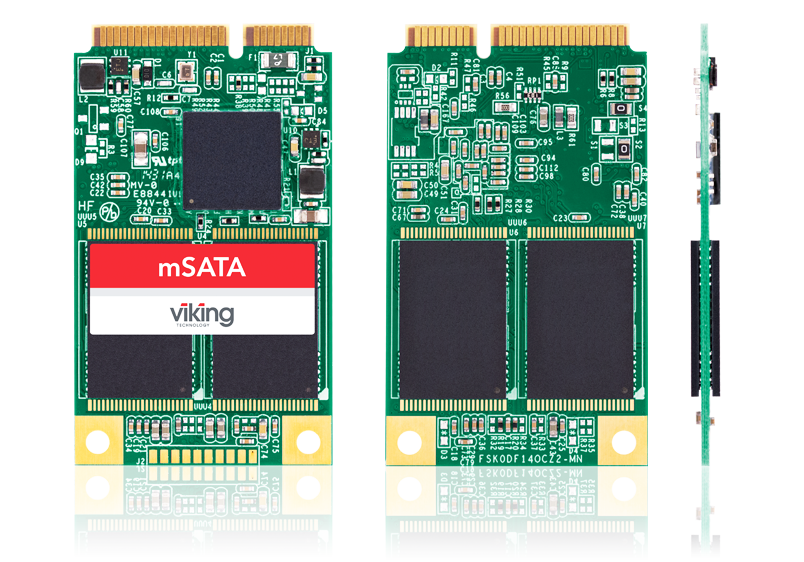

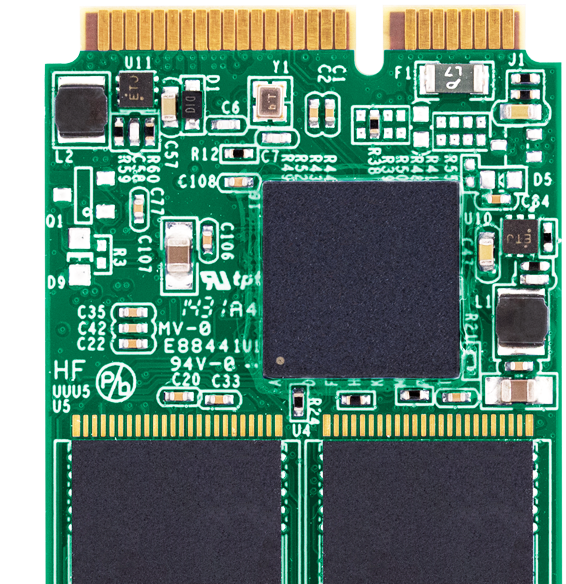

mSATA

mSATA SSD’s are solid state drive solutions ideal for space-constrained embedded server & storage systems, telecommunications, automotive, gaming and many industrial applications.

This solution delivers outstanding performance in a small, industry standard form factor and features intelligent flash management techniques to optimize endurance and wear-leveling. mSATA drives are available in a variety of performance capacities as well as ruggedization and increased endurance.

Datasheets
Product Brief Inquiry
mSATA

mSATA SOLID STATE DRIVE

ULTRA-HIGH PERFORMANCE

Icon High Performance

Thin form factor in a variety of sizes for increased performance & capacity

SPACE SAVING

Space Saving icon

Small Form Factor

OUTSTANDING PERFORMANCE

Viking’s mSATA exclusive advanced controller features protection against catastrophic flash page and block failures, as well as data path CRC error detection for unparalleled data integrity.

Capacity Performance Environmental Power Dimensions
SLC – 4GB to 64GB Up to 500 MB/s (R) SHOCK – 50g, 11ms, 3 shocks applied on 3 perpendicular axis SATA Connectivity – Mini PCIe Card Edge 29.85 (w) x 50.8 (l) x 3.85 (h)
eMLC/MLC/3D NAND – 30GB to 1TB Up to 350 MB/s (W) VIBRATION – 16.4g rms 10 - 2,000 Hz, 3 axis 2 Watts – Active, 0.25 Watts (Idle)
Up to SATA 6Gb (Interface) OPERATING TEMP – 0°C to 70°C (Ctemp), -40°C to 85°C (Itemp)
ALTITUDE – 80,000 feet
HUMIDITY – 5% to 95%, non-condensing, relative
SAFETY/AGENCY/COMPLIANCE – FCC, CE, TUV

EXTENDED FEATURES

  • Insulation against single NAND supply issues
  • Advanced SSD-specific SMART command support
  • Available in SATA-III 6Gbs
  • Read intensive & Low cost solution options
  • Max write performance
  • Supports MLC/SLC/TLC NAND Configurations
mSATA

OPTIMIZED ENDURANCE

VIKING CUSTOMIZATION OPTIONS

  • Data protection
  • Enhanced & Ruggedized storage
  • Conformal Coated options
  • Client & Enterprise controller options
  • Kioxia & Micron NAND options



MARKETS SERVED

Servers | Cache | Data Acceleration | Factory Automation | Boot Device | Medical Equipment

mSATA
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBER CONTROLLER NAND
mSATA MO300 -40°C to +85°C 960GB VRFEM2960GEIFWT3 SM2259 TSB BiCS 3D
mSATA MO300 -40ºC to +85ºC 480GB VRFEM2480GEIHWT3 SM2259 TSB BiCS 3D
mSATA MO300 -40ºC to +85ºC 240GB VRFEM2240GEI5WT3 SM2259 TSB BiCS 3D
mSATA MO300 -40ºC to +85ºC 120GB VRFEM2120GEI5WT3 SM2259 TSB BiCS 3D
mSATA MO300 -40ºC to +85ºC 60GB VRFEM2060GEI5WT3 SM2259 TSB BiCS 3D
