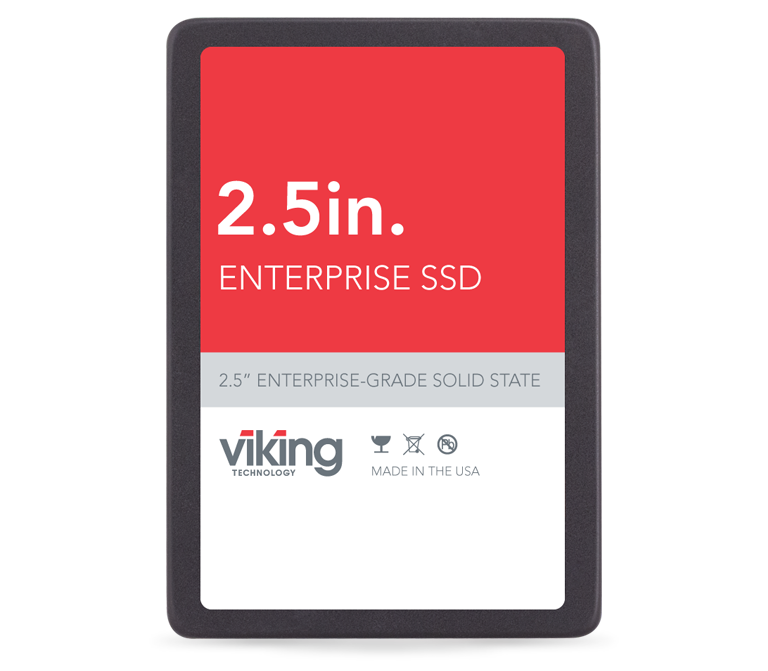

2.5 in. SSD

Viking Technology’s 2.5 inch SSDs are built with the understanding of OEM expectations through comprehensive and exhaustive design verification and production test methods. Viking’s 2.5 Inch SSDs for the embedded and Industrial market deliver the highest levels of quality, environmental ruggedness and endurance.

As well, the 2.5 inch SSDs can be leverage for the Enterprise market with engineered options for the highest levels of performance and reliability, Viking featuring multiple interfaces including SATA, SAS and PCIe/NVMe that delivers high performance with reliability.

Datasheets
Product Brief Inquiry

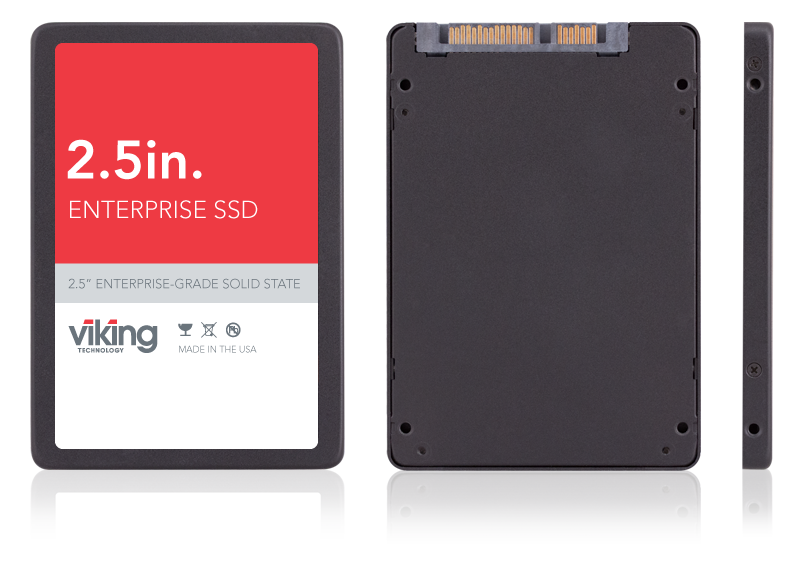

2.5 in. SSD

2.5 IN. SOLID STATE DRIVE

ULTRA-HIGH PERFORMANCE

Icon High Performance

Thin form factor in a variety of sizes for increased performance & capacity

RUGGEDIZED

Ruggedized

Enhanced & ruggedized storage for system requirements

DELIVERING HIGH-PERFORMANCE WITH RELIABILITY

Viking’s 2.5 inch SSD consists of multiple interfaces including SATA, SAS, and PCIe/NVMe that deliver high performance with reliability.

Capacity Performance Reliability Environmental Power Dimensions
Up to 8TB Up to 430,000 IOPS (Sustained Random Read/Write) 55bit / 512 BCH (ECC) SHOCK – 50g, 11ms, 3 shocks applied in each direction on 3 mutually perpendicular axis 6.0 Watts (Active) 100.2mm (l) x 69.9mm (w) x 9.5mm (h)
2,100MB/1,400MB (Sustained Read/Write) <1 in 1017 bits read (BER) VIBRATION – 16.4g rms 10 - 2,000 Hz, 3 axis
SATA 6Gb (Interface) Power Fail Data Protection OPERATING TEMP – 0ºC to 70ºC (Ctemp), -45ºC to 85ºC (Itemp)
5+ Years (Endurance) ALTITUDE – 80,000 ft
Data recovery from sector, page, and block failure. End-to-End CRC protection HUMIDITY – 5% to 95%, non-condensing, relative
TEMPERATURE MONITORING – On-board sensor, S.M.A.R.T. Attribute SAFETY/AGENCY/COMPLIANCE – FCC, CE, TUV
TEST STANDARD – MIL-STD-810

EXTENDED FEATURES

    • Support MLC/SLC/3D NAND Configurations
    • Advanced SSD-specific SMART command support
    • Package and firmware customization
    • Power protection
    • Data path protection, Encryption, Max Write

Performance

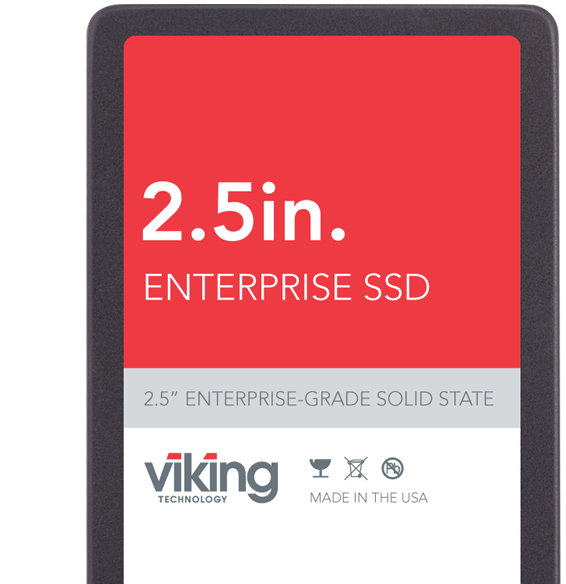

2.5 in. SSD

QUALITY, RUGGEDNESS, ENDURANCE

VIKING CUSTOMIZATION OPTIONS

Through comprehensive and exhaustive production test, Viking’s 2.5 inch SSD delivers the highest levels of environmental ruggedness and endurance.

  • SSD Storage Array
  • File System (Parallel & Serial)
  • Tiering & OLTP Log Cache (LC)
  • Software & NVMe RAID
  • Burst Data Deserializer
  • Remote Shared Persistent Memory

MARKETS SERVED

Data Center | HDD | Video | Telecom | Aerospace | Servers | Storage

2.5 in. SSD
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBER CONTROLLER NAND
2.5" PCIe 7mm 0ºC to +70ºC 6400GB VSFN256T40YC8WSA Samsung Samsung
2.5" PCIe 7mm 0ºC to +70ºC 3200GB VSFN253T20YC4WSA Samsung Samsung
2.5" PCIe 7mm 0ºC to +70ºC 1600GB VSFN251T60YC4WSA Samsung Samsung
2.5" PCIe 7mm 0ºC to +70ºC 960 GB VSFN22960GHCLWSA Samsung Samsung
2.5" PCIe 7mm 0ºC to +70ºC 7680GB VSFN227T68HC8WSA Samsung Samsung
2.5" PCIe 7mm 0ºC to +70ºC 3840GB VSFN223T84HC8WSA Samsung Samsung
2.5" PCIe 7mm 0ºC to +70ºC 1920GB VSFN221T92HCLWSA Samsung Samsung
2.5" SAS 15mm 0ºC to +70ºC 960GB VSF225960G4CFWSA Samsung Samsung
2.5" SAS 15mm 0ºC to +70ºC 7680GB VSF2257T684C8WSA Samsung Samsung
2.5" SAS 15mm 0ºC to +70ºC 3840GB VSF2253T844C8WSA Samsung Samsung
2.5" SAS 15mm 0ºC to +70ºC 30720GB VSF22530T74C8WSA Samsung Samsung
2.5" SAS 15mm 0ºC to +70ºC 1920GB VSF2251T924C4WSA Samsung Samsung
2.5" SAS 15mm 0ºC to +70ºC 15360GB VSF22515T34C8WSA Samsung Samsung
2.5" SATA 7mm 0ºC to +70ºC 960GB VSFS22960GFCLWSAE Samsung Samsung
2.5" SATA 7mm 0ºC to +70ºC 7680GB VSFS227T68FC8WSAE Samsung Samsung
2.5" SATA 7mm 0ºC to +70ºC 480GB VSFS22480GFCFWSAE Samsung Samsung
2.5" SATA 7mm 0ºC to +70ºC 3840GB VSFS223T84FCLWSAE Samsung Samsung
2.5" SATA 7mm 0ºC to +70ºC 240GB VSFS22240GFCFWSAE Samsung Samsung
2.5" SATA 7mm 0ºC to +70ºC 1920GB VSFS221T92FCLWSAE Samsung Samsung
2.5" SATA 7mm -40ºC to +85ºC 120GB VRFS22120GEI2WK5 SM2259 Kioxia BiCS 5
2.5" SATA 7mm -40ºC to +85ºC 240GB VRFS22240GEI2WK5 SM2259 Kioxia BiCS 5
2.5" SATA 7mm -40ºC to +85ºC 480GB VRFS22480GEI2WK5 SM2259 Kioxia BiCS 5
2.5" SATA 7mm -40ºC to +85ºC 960GB VRFS22960GEIJWK5 SM2259 Kioxia BiCS 5
2.5" SATA 7mm -40ºC to +85ºC 1920GB VRFS221T92EILWK5 SM2259 Kioxia BiCS 5
