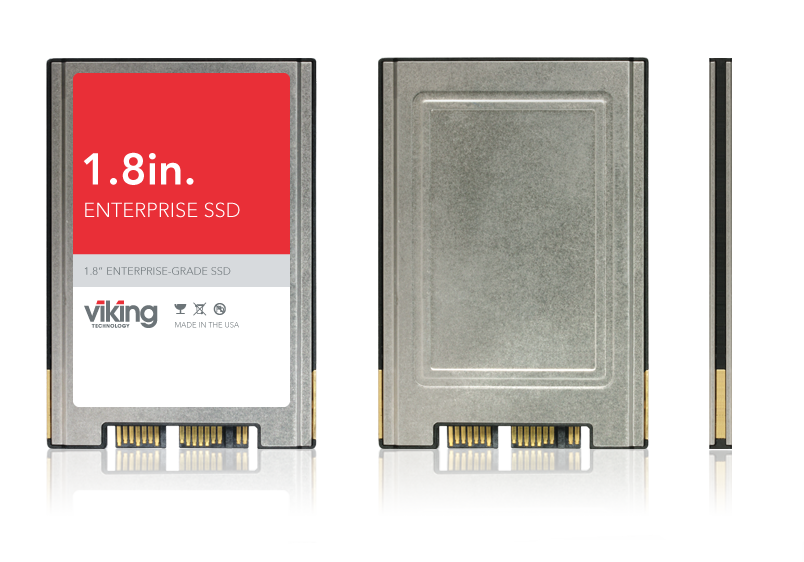

1.8 in. SSD

Viking Technology’s 1.8 inch SSDs are built with the understanding of OEM expectations through comprehensive and exhaustive design verification and production test methods. Viking’s 1.8 inch SSDs for the embedded and Industrial market delivers the highest levels of quality, environmental ruggedness and endurance.

As well, the 1.8 inch SSDs can be leverage for the Enterprise market with engineered options for the highest levels of performance and reliability, Viking featuring SATA-III and delivers high performance with reliability.

Datasheets
Product Brief Inquiry
1.8 in. SSD

1.8 IN. SOLID STATE DRIVE

ULTRA-HIGH PERFORMANCE

Icon High Performance

Thin form factor in a variety of sizes for increased performance & capacity

RUGGEDIZED

Ruggedized

Enhanced & ruggedized storage for system requirements

DELIVERING HIGH-PERFORMANCE WITH RELIABILITY

Viking’s 1.8 inch SSD SATA interface delivers high performance with reliability.

Capacity Performance Reliability Environmental Power Dimensions
Up to 1TB Up to 100,000 IOPS (Sustained Random Read/Write) 55bit / 512 BCH (ECC) SHOCK – 50g, 11ms, 3 shocks applied in each direction on 3 mutually perpendicular axis <6W – Active (Typical) 78.5mm (l) x 54.0mm (w) x 5.0mm (h)
520 MB/s (Sustained Read/Write) <1 in 1017 bits read (BER) VIBRATION – 16.4g rms 10 - 2,000 Hz, 3 axis
SATA 6Gb (Interface) Power Fail Data Protection OPERATING TEMP – 0ºC to 70ºC (Ctemp), -45ºC to 85ºC (Itemp)
5+ Years (Endurance) ALTITUDE – 80,000 ft
Data recovery from sector, page, and block failure. End-to-End CRC protection HUMIDITY – 5% to 95%, non-condensing, relative
TEMPERATURE MONITORING – On-board sensor, S.M.A.R.T. Attribute SAFETY/AGENCY/COMPLIANCE – FCC, CE, TUV
TEST STANDARD – MIL-STD-810

EXTENDED FEATURES

  • Read intensive & Low cost solution options
  • Data path protection, Encryption, Max write performance
  • Insulation against single NAND supply issues
  • Locked BOM
1.8 in. SSD

QUALITY, RUGGEDNESSS, ENDURANCE

VIKING CUSTOMIZATION OPTIONS

Delivering the highest levels of environmental ruggedness and endurance.

  • Available in SATA-III
  • Package and firmware customization
  • Supports MLC/SLC/TLC NAND Configurations
  • Advanced SSD-specific SMART command support



MARKETS SERVED

Data Center | HDD | Video | Telecom | Aerospace | Servers | Storage

1.8 in. SSD
FORM FACTOR INTERFACE TEMP CAPACITY PART NUMBER CONTROLLER NAND
1.8" SSD 5mm -40ºC to +85ºC 120GB VRFS11120GEI2WK5 SM2259 Kioxia BiCS 5
1.8" SSD 5mm -40ºC to +85ºC 240GB VRFS11240GEI2WK5 SM2259 Kioxia BiCS 5
1.8" SSD 5mm -40ºC to +85ºC 480GB VRFS11480GEI2WK5 SM2259 Kioxia BiCS 5
1.8" SSD 5mm -40ºC to +85ºC 960GB VRFS11960GEIJWK5 SM2259 Kioxia BiCS 5
1.8" SSD 5mm -40ºC to +85ºC 1920GB VRFS111T92EIKWK5 SM2259 Kioxia BiCS 5
